Targeted sequencing

Enrich your understanding with accurate detection of all variant types, even in the hardest-to-reach regions of the genome

Learn how

Sprite decoration

Targeted sequencing

Targeted sequencing with HiFi reads allows you to sequence only the genomic regions you care about — easily and cost-effectively at scale. Hybrid capture, amplicon, and PCR-free PureTarget methods are available to suit your needs, giving you all the benefits you expect from HiFi reads including accurate haplotype resolution and comprehensive detection of all variant types. The length and accuracy of HiFi reads allow you to access genomic dark regions such as areas of high homology, GC-rich and repetitive regions, and to resolve complex gene families like HLA and pharmacogenes like CYP2D6, and sequence full-length repeat expansion targets with methylation.

  • Cost-effective and flexible scaling
  • Robust coverage of difficult-to-sequence or difficult-to-map regions
  • Ancestry-agnostic discovery of rare or novel variants
  • High-accuracy variant calling
  • Unambiguous haplotype resolution through direct phasing
  • Custom panels, flexible scaling, cost-effective projects
  • Consolidate legacy molecular workflows into one assay

Sprite decoration

Shine a light on dark regions of the genome with the PureTarget repeat expansion panel

Scalable solution for deep sequencing of repeat expansions
Multiplex up to 48 samples on the Revio system and 24 samples on the Sequel systems for a panel of 20 repeat expansion targets. With streamlined library prep and analysis support in SMRT Link 13.1, go from samples to answer in 3 days.

What does comprehensive genotyping look like?

  • Accurate sizing of both alleles, including large repeat expansions
  • Single base resolution of repeat sequence
  • Simultaneous detection of methylation
  • Deep coverage so you can profile mosaicism

What genes are included in the panel?
AR, ATN1, ATXN1, ATXN10, ATXN2, ATXN3, ATXN7, ATXN8, C9ORF72, CACNA1A, CNBP, DMPK, FMR1, FXN, HTT, PABPN1, PPP2R2B, RFC1, TBP, TCF4

human

Human genomics

Cost-effectively explore the full variation of the regions of the genome that matter to you.

Learn more

white hla icon

HLA SEQUENCING

Overcome gene-family complexity and extreme polymorphism to identify true HLA allelic diversity.

Learn more

plant + animal genomics

PLANT + ANIMAL SCIENCES

Gain a comprehensive view of specific genomic regions of interest, regardless of genome size or complexity.

Learn more

white targeted sequencing icon

MICROBIAL + INFECTIOUS DISEASE RESEARCH

Resolve viral populations to better understand evolution, quasispecies dynamics, drug resistance, and immune escape

Learn more

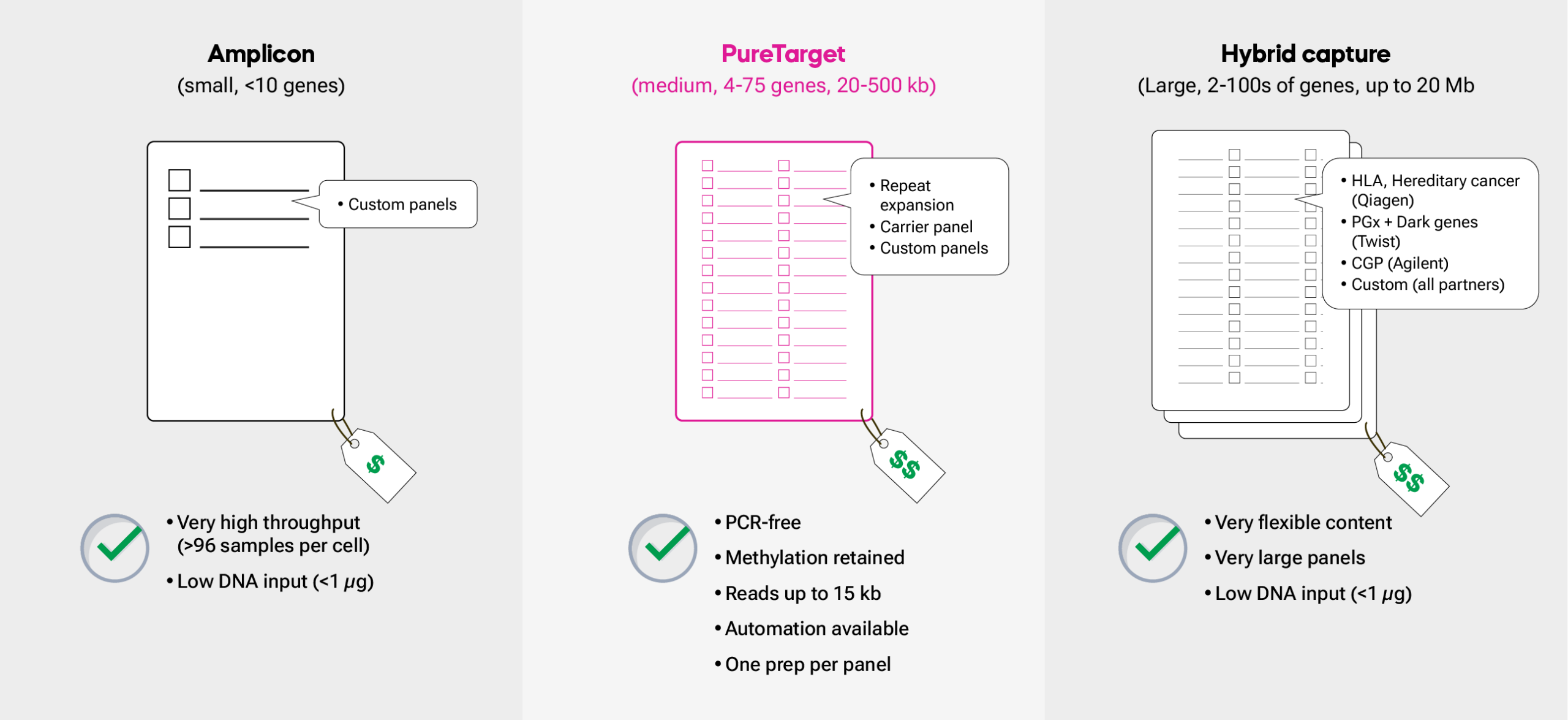

Pick the right workflow for your lab

PureTarget repeat expansion panel

A reimagined product that combines CRISPR-Cas9 technology for target enrichment and long and accurate HiFi reads to sequence the most challenging genomic regions at scale. Multiplex samples on Revio and Sequel II systems for a panel of 20 pathogenic repeat expansion targets linked to human disease. PureTarget libraries consist of DNA in its native form, including epigenetic marks like methylation and are free from errors and artifacts that can be introduced by PCR or hybridization capture methods.

View brochure       Read app note    View PureTarget page

HiFi Target Enrichment

Combine Twist Bioscience target enrichment with PacBio long and accurate HiFi reads to efficiently sequence your priority genomic regions at scale. Sequence enriched regions with a protocol optimized for HiFi reads to get comprehensive detection of single nucleotide variants, structural variants, and indels with haplotype resolution. HiFi target enrichment can deliver accurate alleles for complex gene families such as immune genes (e.g., HLA) and pharmacogenes (e.g., CYP2D6).

HiFi target enrichment enables you to sequence at scale with ready-made Twist Alliance Panels or custom designs. Learn more about Twist and plan your project with this app brief.

PCR based hybridization capture image - PacBio

Sprite decoration
PCR based amplicons graph - PacBio

HiFi amplicon sequencing

Enjoy a simplified workflow with one primer pair and one amplicon pool, easy assay optimization, long-range phasing, and simplified data analysis. Target medically relevant, individual genes or small gene panels using a PCR-based approach. If you can amplify it, HiFi sequencing can span your amplicon in a single read, giving unambiguous haplotype resolution through direct phasing. HiFi amplicon sequencing allows you to replace multiple assays with one fast, easy, scalable, and economical workflow.

Plan your project with this resource and learn more about our barcoding products.

CYP21A2 App Note     CYP2D6 App Note
    SMN1/2 App Note

On-demand webinar

Characterizing C9ORF72 repeat expansions and transcripts using HiFi sequencing

Explore how the PureTarget repeat expansion panel offers comprehensive sequence information for pathogenic repeats, providing clarity where short reads and traditional methods may fall short.

Watch the full webinar

Targeted sequencing datasets

Application Dataset Download literature Technology Sequencing system
PureTarget Repeat expansion panel Coriell samples PureTarget brochure HiFi long read Sequel IIe system
PureTarget Repeat expansion panel RFC1 samples PureTarget brochure HiFi long read Sequel IIe system
PureTarget Repeat expansion panel HG001 and HG002 48-plex PureTarget brochure HiFi long read Revio system
PureTarget Repeat expansion panel HG001 and HG002 8-plex PureTarget brochure HiFi long read Sequel IIe system
Target enrichment IDT xGen cfDNA & FFPE dataset Technical note SBB short read Onso system
Target enrichment SeraCare ctDNA w/Agilent capture panel SBB sequencing on SeraCare ctDNA using Agilent hybrid capture panel SBB short read Onso system
Target enrichment Twist Exome 2.0 NA12878 8-plex Application brief - germline variant detection on Onso SBB short read Onso system
Target enrichment Twist Alliance Dark Genes Panel HiFi sequencing with Twist Bioscience target enrichment HiFi long read Revio system
Target enrichment Twist Alliance Dark Genes Panel Twist Alliance Dark Genes Panel HiFi long read Sequel IIe system
Target enrichment Twist Alliance Long Read PGx Panel Twist Alliance Dark Genes panel HiFi long read Sequel IIe system
Target enrichment Twist Custom BRCA1/2 Panel HiFi sequencing with Twist Bioscience target enrichment HiFi long read Sequel IIe system
Amplicon sequencing CYP2D6 amplicon HiFi amplicon sequencing for pharmacogenetics: CYP2D6 HiFi long read Sequel IIe system

More datasets

Sprite decoration

Application brief

Scalable HiFi sequencing with Twist Bioscience long-read alliance panels

Access many benefits of PacBio® HiFi long-read sequencing at a fraction of the cost with Twist Bioscience long-read sequencing panels. Twist Bioscience’s target enrichment technology provides high capture efficiency and exceptional uniformity across target regions.

Learn more

Blog

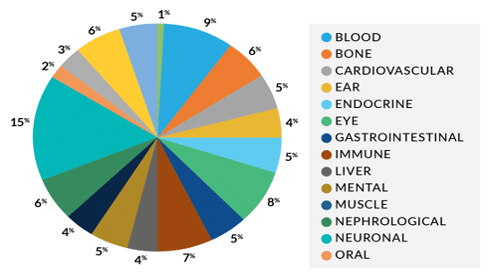

Shining a light on dark genes

Countries around the world have recognized the value of precision health and population genomics research initiatives. They have launched efforts to sequence thousands to millions of genomes in order to learn more about how complex or rare inherited diseases impact their populations and how to mitigate their impacts. The goal? Building diverse health databases, learn how biology and lifestyle affect health, and bring us closer to a future where precision medicine is the standard.

But a population genomics program database can only be as good as the data it collects. Which raises the question – are the programs in place today able to collect everything they need to be the most effective for their target population?

Learn more

Targeted sequencing workflow at a glance

Easy-to-use, high-throughput sequencing for the accuracy you need at an affordable cost

Straightforward library prep

Go from sample to sequencer in a single afternoon

Targeted sequencing Icon representing targeted sequencing

Complete + accurate sequencing

Obtain accurate, unbiased, and long reads. Directly detect epigenetic modifications.

Universal file types

Analyze data using any of the common genome assembly and analysis tools

Sprite decoration

YOUR MOMENT IS WAITING

Long reads at a lower cost and higher throughput. Short reads with near-perfect accuracy. From the fullest picture to the finest detail, your moment of discovery is waiting.
